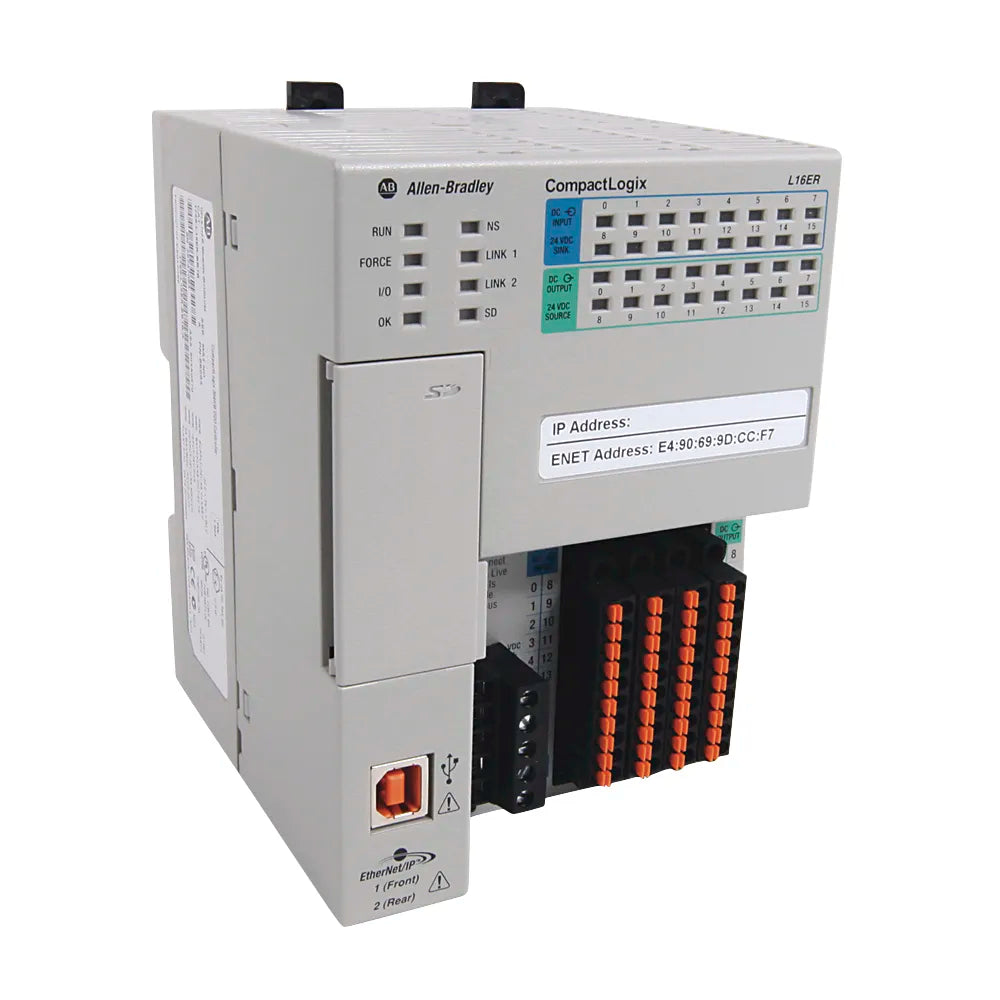

Allen-Bradley 1769-L16ER-BB1B CompactLogix controller with EtherNet/IP for effective industrial automation.

Allen-Bradley 1769-L16ER-BB1B

SKU: 1769-L16ER-BB1B
Your Price:
$1,716.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1769-L16ER-BB1B | CompactLogix 5370 L1 Ethernet Processor Module

Overview:

The Allen-Bradley 1769-L16ER-BB1B is a CompactLogix 5370 L1 processor module, designed for industrial automation applications requiring EtherNet/IP communication, integrated I/O, and expansion capabilities. It features Dual Ethernet ports with Device Level Ring (DLR) capability, providing network redundancy and reliability.

With 384KB of user memory, this controller includes (16) 24V DC digital inputs and (16) 24V DC digital outputs, allowing direct control of field devices. It also supports 6 expansion modules via 1734 POINT I/O, enabling system scalability. The module is powered by 24V DC and uses a POINT I/O backplane, making it an ideal compact control solution.

Additionally, it comes with a 1GB SD card and supports up to 2GB SD card capacity, ensuring efficient data storage and backup capabilities.

Key Features:

  • CompactLogix 5370 L1 Processor Module – Optimized for space-saving industrial control
  • Dual Ethernet Ports with DLR – Supports redundant Device Level Ring (DLR) networking
  • 384KB User Memory – Ensures efficient control program execution
  • Integrated I/O:
    • 16 x 24V DC Digital Inputs
    • 16 x 24V DC Digital Outputs
  • Supports 6 Expansion Modules – Uses 1734 POINT I/O backplane
  • 4 EtherNet/IP Nodes Supported – Enables seamless industrial networking
  • 1 x USB Programming/Downloading Port – Allows fast system configuration
  • 24V DC Power Supply – Compact and energy-efficient operation
  • SD Card Support: Comes with 1GB SD card, expandable up to 2GB

Technical Specifications:

  • Model: 1769-L16ER-BB1B
  • Processor Series: CompactLogix 5370 L1
  • Memory: 384KB User Memory
  • Ethernet Ports: 2 x EtherNet/IP with DLR Capability
  • USB Port: 1 x USB for Programming/Downloading
  • Integrated I/O:
    • 16 Digital Inputs (24V DC)
    • 16 Digital Outputs (24V DC)
  • I/O Expansion Capacity: 6 Modules via 1734 POINT I/O
  • EtherNet/IP Nodes: Up to 4
  • Power Supply: 24V DC
  • SD Card Support: 1GB (included), expandable to 2GB
  • Mounting Type: DIN Rail

Applications:

  • Factory Automation – Provides real-time control and communication
  • Process Control Systems – Supports stable and scalable automation solutions
  • Machine Interface Management – Enables direct control of digital inputs/outputs
  • SCADA & Distributed I/O Systems – Supports EtherNet/IP connectivity for industrial automation

Why Choose the Allen-Bradley 1769-L16ER-BB1B?

The Allen-Bradley 1769-L16ER-BB1B CompactLogix Processor delivers efficient processing, integrated digital I/O, EtherNet/IP communication, and expansion capabilities, making it an ideal solution for compact industrial control applications.

Order Now

Fast shipping and worldwide delivery available.

Brand-New, Authentic, Factory-Sealed Components At PLCVERSE, every item we offer is guaranteed to be brand-new, original, and delivered in its factory-sealed packaging. Our parts are sourced with strict quality control to ensure you receive genuine automation components that meet top industry reliability and performance standards.
1-Year Warranty Coverage Every new product purchased from PLCVERSE includes a full 1-year warranty. We stand behind the quality and durability of our automation components, providing protection against manufacturing defects under normal use. Our commitment is to ensure you receive dependable, high-performance parts with complete peace of mind.
PLCVERSE is an independent seller of industrial automation equipment. We are not an authorized distributor, partner, or representative of any of the manufacturers featured on this website. All brand names, trademarks, and logos remain the property of their respective owners. PLCVERSE has no association or endorsement from ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other brands mentioned.
