Allen-Bradley 1762-IQ16, 16 inputs for MicroLogix PLCs, ideal for digital signal acquisition in industrial settings.

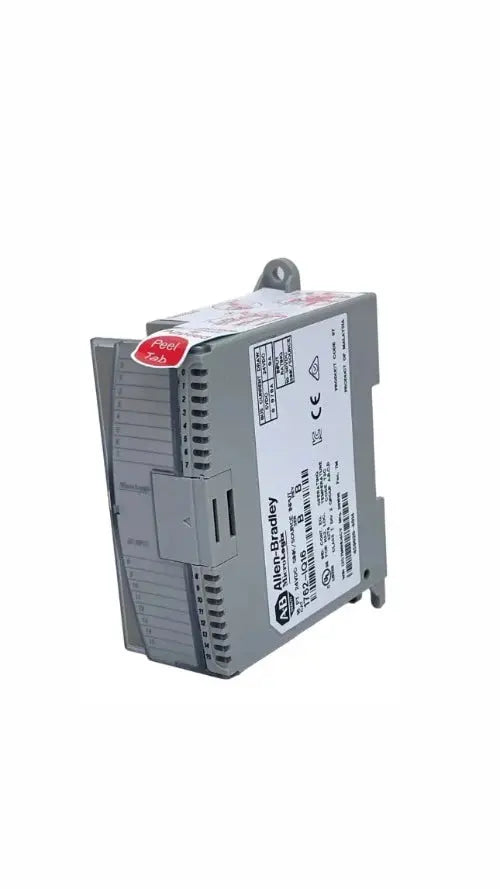

Allen-Bradley 1762-IQ16

SKU: 1762-IQ16
Your Price:
$302.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1762-IQ16 | MicroLogix 1200 16-Point 24V DC Sink/Source Input Module

Overview

The Allen-Bradley 1762-IQ16 is a 16-point DC input module developed for MicroLogix 1200 controllers. It provides sink/source input capability, offering flexible integration into industrial automation systems needing digital signal acquisition.

With a compact design and reliable performance, the 1762-IQ16 supports various voltage levels and ensures rapid signal response times, making it ideal for machine automation, process control, and industrial monitoring applications.

Key Features

  • 16 Digital Input Points – Expands MicroLogix 1200 controllers with more input capacity
  • 24V DC Sink/Source Inputs – Accommodates both sinking and sourcing layouts
  • Wide Operating Voltage Range:
    • 10-26.4V DC @ 55°C (131°F)
    • 10-30V DC @ 30°C (86°F)
  • Nominal Input Impedance: 3 kΩ
  • Fast Signal Response Time:
    • On Delay: 8ms
    • Off Delay: 8ms
  • Compact DIN Rail and Panel Mount Design – Maximizes space in control panel setups
  • LED Status Indicators – Facilitates quick diagnostics and troubleshooting

Technical Specifications

  • Model: 1762-IQ16
  • Series: MicroLogix 1200 Expansion Module
  • Number of Inputs: 16
  • Input Type: 24V DC Sink/Source
  • Operating Voltage Range:
    • 10-26.4V DC @ 55°C (131°F)
    • 10-30V DC @ 30°C (86°F)
  • Input Impedance: 3 kΩ nominal
  • Maximum Signal Delay: 8ms (On/Off)
  • Backplane Current Draw: 85mA at 5V DC
  • Isolation Voltage: 1,500V AC
  • Operating Temperature: 0°C to 55°C (32°F to 131°F)
  • Mounting: DIN Rail or Panel Mount

Applications

  • Industrial Automation Systems – Ensures reliable digital signal acquisition for control systems
  • Machine Control and Monitoring – Improves process efficiency and automation
  • Factory and Process Automation – Supports diverse sensor and switch inputs
  • MicroLogix 1200 Expansion – Boosts input capacity for industrial PLC setups

Why Choose the Allen-Bradley 1762-IQ16?

  • Reliable and Durable Digital Input Module – Designed for industrial automation
  • Flexible Sink/Source Input Configuration – Supports multiple wiring setups
  • Seamless Integration with MicroLogix 1200 – Enhances system capabilities
  • Compact and Space-Saving Design – Suited for industrial control panels

Order Now

Fast shipping and worldwide delivery available.

Looking for more options? Explore our full range of Allen-Bradley MicroLogix 1200 Controllers for flexible, compact automation solutions. You can also browse the complete Allen-Bradley MicroLogix PLC Series for all models, technical specifications, and worldwide shipping availability.

Brand-New, Authentic, Factory-Sealed Components At PLCVERSE, every item we offer is guaranteed to be brand-new, original, and delivered in its factory-sealed packaging. Our parts are sourced with strict quality control to ensure you receive genuine automation components that meet top industry reliability and performance standards.
1-Year Warranty Coverage Every new product purchased from PLCVERSE includes a full 1-year warranty. We stand behind the quality and durability of our automation components, providing protection against manufacturing defects under normal use. Our commitment is to ensure you receive dependable, high-performance parts with complete peace of mind.
PLCVERSE is an independent seller of industrial automation equipment. We are not an authorized distributor, partner, or representative of any of the manufacturers featured on this website. All brand names, trademarks, and logos remain the property of their respective owners. PLCVERSE has no association or endorsement from ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other brands mentioned.
