Allen-Bradley 1762-IR4 RTD module featuring four input channels for precise industrial applications.

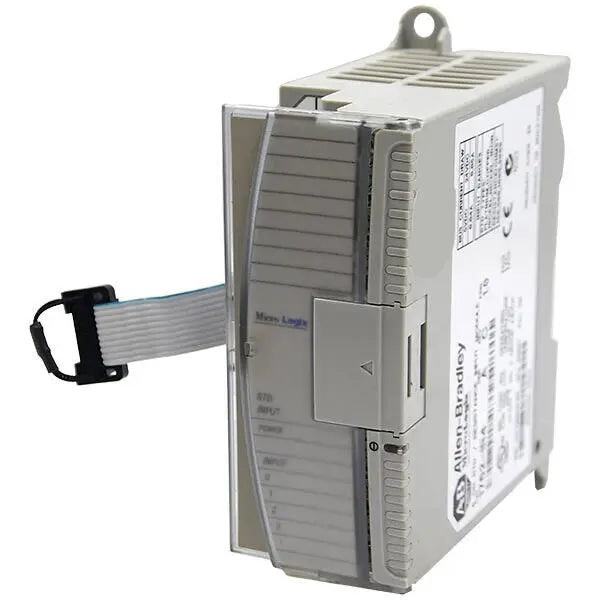

Allen-Bradley 1762-IR4

SKU: 1762-IR4
Your Price:
$530.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1762-IR4 | 4-Channel RTD & Resistance Input Module – For MicroLogix PLCs

Overview

The Allen-Bradley 1762-IR4 is a 4-channel RTD/resistance input module crafted for MicroLogix 1200 and 1400 controllers. It facilitates direct connection to various RTD types (including Pt100, Pt1000, Ni100) or resistance input signals, offering high-resolution data for precise temperature and resistance measurement in industrial control settings.

This module is optimal for temperature-sensitive processes, such as those found in HVAC systems, food processing, or environmental monitoring.

Key Features

  • Input Channels: 4 differential RTD/resistance inputs

  • Supported Sensors: Pt100, Pt1000, Ni100, Ni1000, and general resistance

  • Resolution: 15 bits

  • Measurement Type: Temperature (RTD) and resistance

  • Module Type: Analog input

  • Removable Terminal Block – Enables effortless wiring and replacement

  • Cold Junction Compensation (CJC): Integrated

  • High Accuracy and Repeatability – Perfect for process monitoring

Technical Specifications

  • Model: 1762-IR4

  • Channels: 4

  • Sensor Types: Pt100, Pt1000, Ni100, Ni1000, 100Ω–1000Ω resistance

  • Resolution: 15 bits

  • Input Type: 3-wire RTD or resistance

  • Update Rate: 400 ms (all channels)

  • Mounting: DIN rail or panel

  • Operating Temp: 0°C to +55°C

  • Compatible With: MicroLogix 1200 and 1400

  • Certifications: UL, CE, c-UL

Applications

  • Temperature Monitoring – Using RTD sensors

  • Industrial Ovens & Freezers – Precision thermal management

  • HVAC & Building Automation – Environment control

  • Process Control Systems – RTD-based safety and quality control

Why Choose the 1762-IR4?

  • Direct RTD connection without needing external signal conditioning

  • High-resolution temperature input with various RTD types

  • Perfect match for MicroLogix in temperature-centered automation

Order Now

In stock and ready to ship globally. Inquire about compatible RTD sensors, MicroLogix CPUs, or temperature monitoring solutions.

Looking for various choices? Check out our complete range of Allen-Bradley MicroLogix 1200 Controllers for versatile, compact automation solutions. You can also view the full Allen-Bradley MicroLogix PLC Series for all models, technical specifications, and global shipping options.

Brand-New, Authentic, Factory-Sealed Components At PLCVERSE, every item we offer is guaranteed to be brand-new, original, and delivered in its factory-sealed packaging. Our parts are sourced with strict quality control to ensure you receive genuine automation components that meet top industry reliability and performance standards.
1-Year Warranty Coverage Every new product purchased from PLCVERSE includes a full 1-year warranty. We stand behind the quality and durability of our automation components, providing protection against manufacturing defects under normal use. Our commitment is to ensure you receive dependable, high-performance parts with complete peace of mind.
PLCVERSE is an independent seller of industrial automation equipment. We are not an authorized distributor, partner, or representative of any of the manufacturers featured on this website. All brand names, trademarks, and logos remain the property of their respective owners. PLCVERSE has no association or endorsement from ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other brands mentioned.
