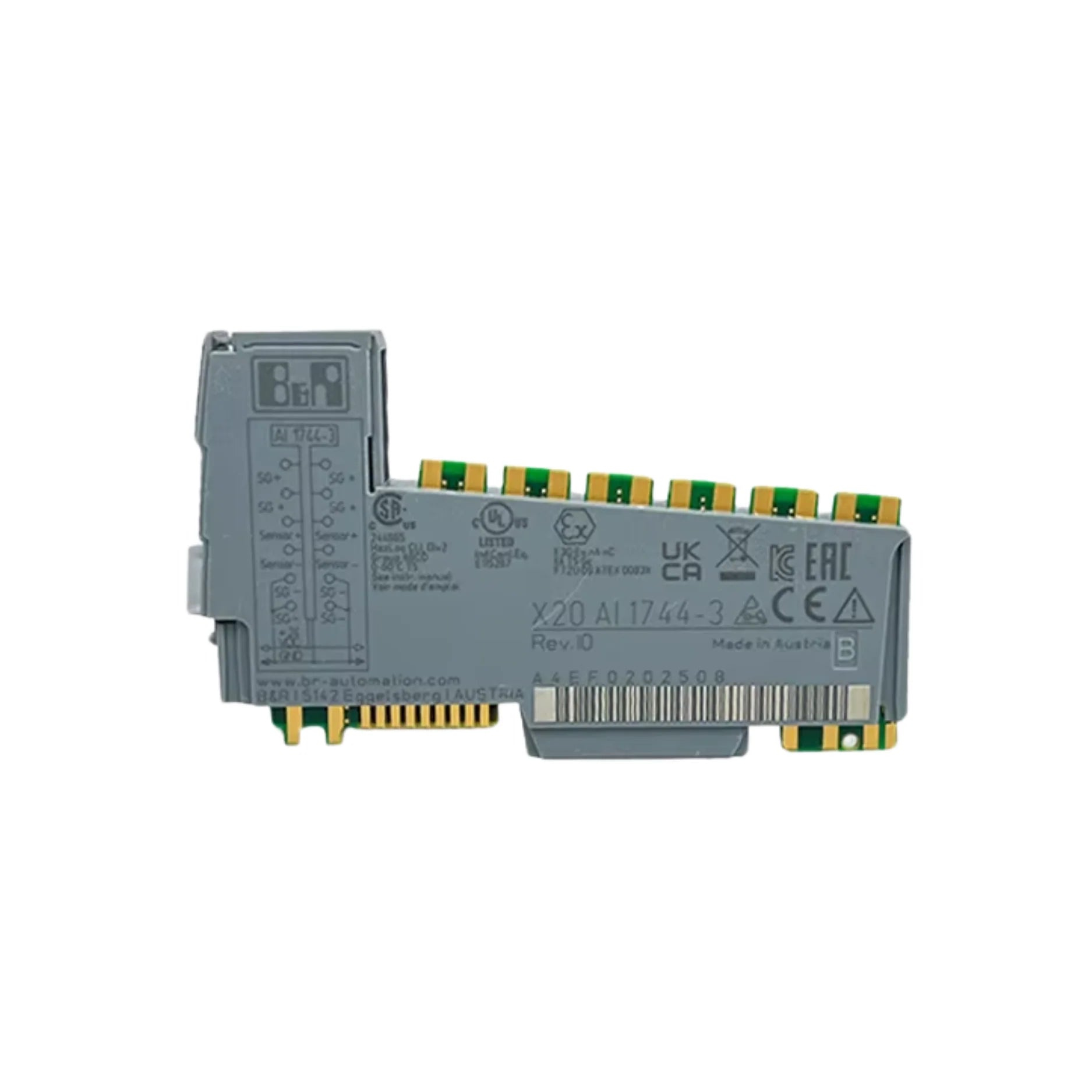

B&R X20AI1744-3 | High-Precision Analog Input Module for Strain Gauge Measurements

Overview

The B&R X20AI1744-3 is a specialized analog input module crafted for precise measurement tasks using full-bridge strain gauges. With a 24-bit resolution, it delivers accurate data acquisition, making it suitable for industrial settings needing high-precision measurements.

Key Features

Input Type: 1 full-bridge strain gauge input
Resolution: 24-bit for high-precision measurements
Data Output Rate: Configurable from 0.1 Hz to 7.5 kHz
Special Operating Modes: Supports synchronous mode and multiple sampling
Filter Level: Configurable for optimized signal processing
Compatibility: Works with 4-wire and 6-wire strain gauge load cells
ATEX Compliance: Suitable for use in hazardous environments

Technical Specifications

Model Number: X20AI1744-3
Series: X20
Input Signal Range: 2 to 256 mV/V
Excitation Voltage: 5.5 VDC, max. 65 mA
Sampling Rate: 0.1 to 7500 samples per second
Signal-to-Noise Ratio: 60 dB
Input Impedance: 85 to 5000 Ω
Operating Voltage: 24 VDC
Dimensions: Height: 9.9 cm; Width: 1.25 cm; Length: 7.7 cm
Weight: Approximately 0.2 kg
Certifications: ATEX compliant for hazardous environments

Applications

Industrial Automation: Precise force and weight measurements in manufacturing processes
Material Testing: Accurate strain measurements for quality control
Structural Monitoring: Monitoring stress and strain in structures for safety assessments
OEM Equipment: Integration into specialized machinery requiring strain measurement capabilities

Why Choose the B&R X20AI1744-3?

High Precision: 24-bit resolution ensures accurate and reliable measurements
Flexible Configuration: Adjustable data output rates and filter settings for various applications
Robust Design: ATEX compliance allows use in hazardous environments
Versatile Compatibility: Supports both 4-wire and 6-wire strain gauge load cells
