Product Overview:

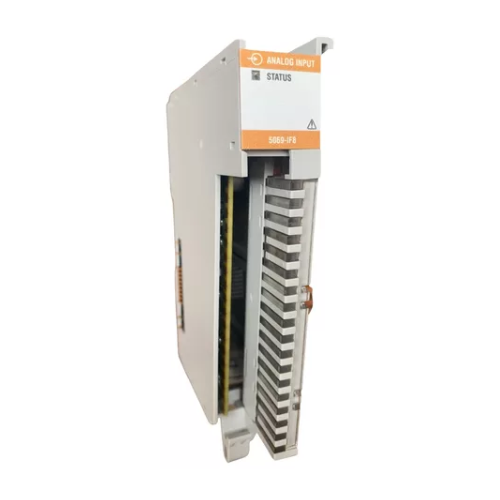

The Allen-Bradley 5069-IF8 Compact I/O Analog Input Module is a high-performance module designed to fit seamlessly with CompactLogix systems. It has 8 configurable input channels for current and voltage signals. The module ensures precise, fast data acquisition, ideal for industrial applications that need real-time analog input processing. Its compact design optimizes control system footprint while maintaining high performance and reliability.
Technical Specifications:
- Module Number: 5069-IF8
- Series: CompactLogix Compact I/O
- Channels: 8 Configurable Analog Input Channels
-
Input Signal Types: Current / Voltage
- Current Ranges: 0–20 mA, 4–20 mA
- Voltage Ranges: ±10V, 0–10V
- Resolution: 16-bit
- Conversion Rate: High-speed conversion for real-time performance
- Accuracy: ±0.05% of full scale
-
Input Impedance:
- Current: ≤250 ohms
- Voltage: ≥1 MΩ
- Isolation: Channel-to-channel and channel-to-backplane isolation
- Connector: Removable terminal block for easy installation and wiring
- Power Supply: Draws from the 5069 Compact I/O power supply
- Temperature Range: -20°C to 60°C (-4°F to 140°F)
Features and Benefits:
-
Multi-Signal Support:
- Configurable channels for both current and voltage, providing flexibility for various application needs.
-
High-Resolution Input:
- 16-bit resolution for accurate analog-to-digital conversion.
-
Fast Conversion Rates:
- High-speed sampling for real-time data in dynamic industrial processes.
-
Compact Design:
- Small form factor fits snugly into CompactLogix systems, saving cabinet space.
-
Ease of Installation:
- Removable terminal blocks simplify wiring and maintenance.
-
Built-In Isolation:
- Protects from electrical noise and surges for reliable operation.
-
Wide Operating Range:
- Withstands extreme temperatures, ideal for challenging conditions.
Applications:
- Process Control: Ideal for monitoring and controlling industrial parameters like temperature and pressure.
- Factory Automation: Used in systems needing precise analog signals for motor and sensor control.
- Energy Management: Supports real-time monitoring of power systems and renewables.
- Material Handling: Enhances responsiveness with precise feedback from sensors.
- OEM Equipment: Perfect for use in custom machinery or systems.
Why Choose the Allen-Bradley 5069-IF8 Module?
- High-Performance Data Acquisition: Suitable for fast, accurate, and reliable analog processing.
- Compact and Versatile: Fits easily into systems and handles various signal types.
- Enhanced System Protection: Built-in isolation ensures long-term reliability.
- Allen-Bradley Quality: Backed by a trusted name in industrial automation.
Brand-New, Authentic, Factory-Sealed Components
At PLCVERSE, every item we offer is guaranteed to be brand-new, original, and delivered in its factory-sealed packaging. Our parts are sourced with strict quality control to ensure you receive genuine automation components that meet top industry reliability and performance standards.
1-Year Warranty Coverage
Every new product purchased from PLCVERSE includes a full 1-year warranty. We stand behind the quality and durability of our automation components, providing protection against manufacturing defects under normal use. Our commitment is to ensure you receive dependable, high-performance parts with complete peace of mind.
PLCVERSE is an independent seller of industrial automation equipment. We are not an authorized distributor, partner, or representative of any of the manufacturers featured on this website. All brand names, trademarks, and logos remain the property of their respective owners. PLCVERSE has no association or endorsement from ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other brands mentioned.
Description
Product Overview:
The Allen-Bradley 5069-IF8 Compact I/O Analog Input Module is a high-performance module designed to fit seamlessly with CompactLogix systems. It has 8 configurable input channels for current and voltage signals. The module ensures precise, fast data acquisition, ideal for industrial applications that need real-time analog input processing. Its compact design optimizes control system footprint while maintaining high performance and reliability.
Technical Specifications:
- Module Number: 5069-IF8
- Series: CompactLogix Compact I/O
- Channels: 8 Configurable Analog Input Channels
-
Input Signal Types: Current / Voltage
- Current Ranges: 0–20 mA, 4–20 mA
- Voltage Ranges: ±10V, 0–10V
- Resolution: 16-bit
- Conversion Rate: High-speed conversion for real-time performance
- Accuracy: ±0.05% of full scale
-
Input Impedance:
- Current: ≤250 ohms
- Voltage: ≥1 MΩ
- Isolation: Channel-to-channel and channel-to-backplane isolation
- Connector: Removable terminal block for easy installation and wiring
- Power Supply: Draws from the 5069 Compact I/O power supply
- Temperature Range: -20°C to 60°C (-4°F to 140°F)
Features and Benefits:
-
Multi-Signal Support:
- Configurable channels for both current and voltage, providing flexibility for various application needs.
-
High-Resolution Input:
- 16-bit resolution for accurate analog-to-digital conversion.
-
Fast Conversion Rates:
- High-speed sampling for real-time data in dynamic industrial processes.
-
Compact Design:
- Small form factor fits snugly into CompactLogix systems, saving cabinet space.
-
Ease of Installation:
- Removable terminal blocks simplify wiring and maintenance.
-
Built-In Isolation:
- Protects from electrical noise and surges for reliable operation.
-
Wide Operating Range:
- Withstands extreme temperatures, ideal for challenging conditions.
Applications:
- Process Control: Ideal for monitoring and controlling industrial parameters like temperature and pressure.
- Factory Automation: Used in systems needing precise analog signals for motor and sensor control.
- Energy Management: Supports real-time monitoring of power systems and renewables.
- Material Handling: Enhances responsiveness with precise feedback from sensors.
- OEM Equipment: Perfect for use in custom machinery or systems.
Why Choose the Allen-Bradley 5069-IF8 Module?
- High-Performance Data Acquisition: Suitable for fast, accurate, and reliable analog processing.
- Compact and Versatile: Fits easily into systems and handles various signal types.
- Enhanced System Protection: Built-in isolation ensures long-term reliability.
- Allen-Bradley Quality: Backed by a trusted name in industrial automation.
Condition
Brand-New, Authentic, Factory-Sealed Components
At PLCVERSE, every item we offer is guaranteed to be brand-new, original, and delivered in its factory-sealed packaging. Our parts are sourced with strict quality control to ensure you receive genuine automation components that meet top industry reliability and performance standards.
Warranty
1-Year Warranty Coverage
Every new product purchased from PLCVERSE includes a full 1-year warranty. We stand behind the quality and durability of our automation components, providing protection against manufacturing defects under normal use. Our commitment is to ensure you receive dependable, high-performance parts with complete peace of mind.
Disclaimer
PLCVERSE is an independent seller of industrial automation equipment. We are not an authorized distributor, partner, or representative of any of the manufacturers featured on this website. All brand names, trademarks, and logos remain the property of their respective owners. PLCVERSE has no association or endorsement from ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other brands mentioned.
