Omron E3Z-R86

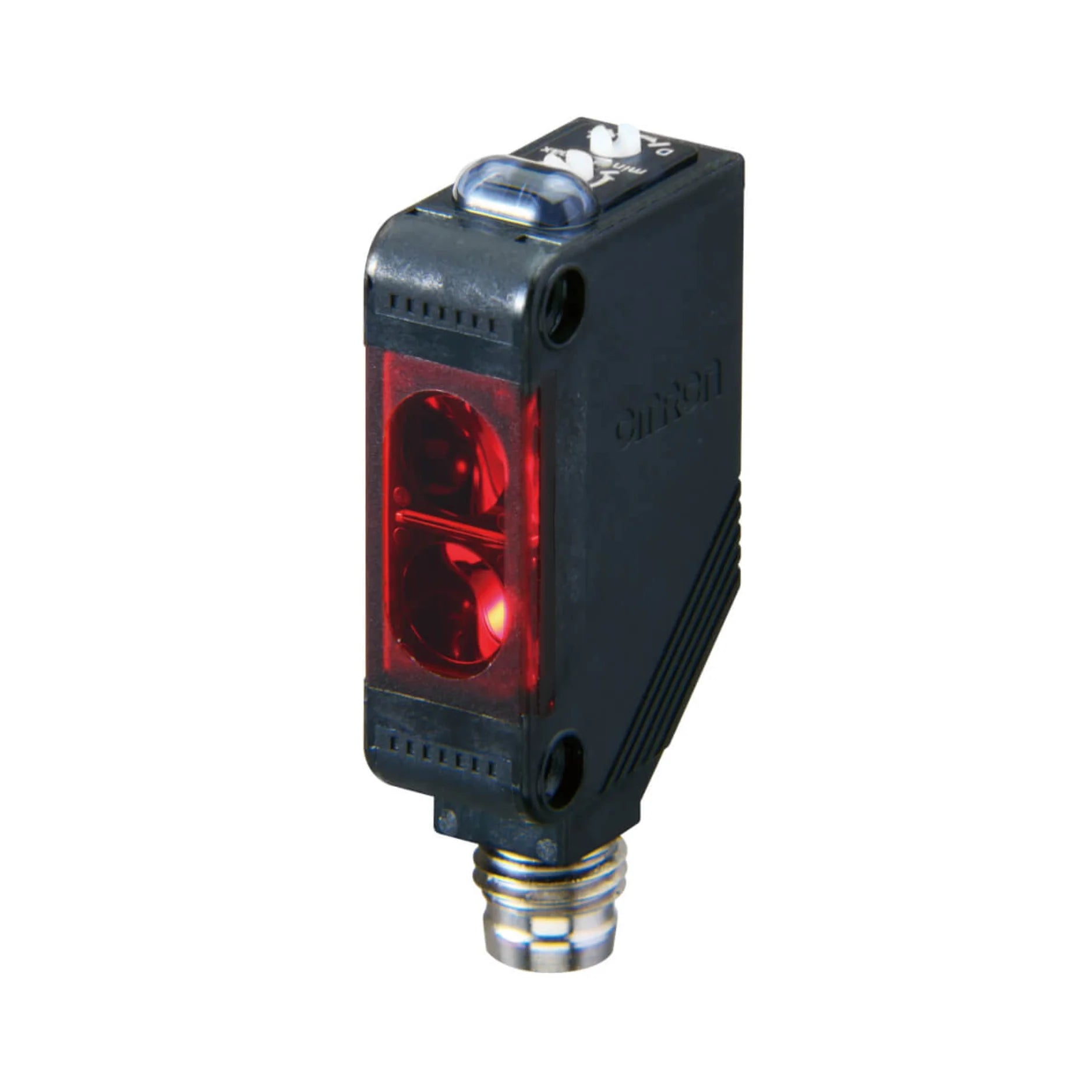

Omron E3Z-R86 | High-Performance Retro-Reflective Sensor for Reliable Object Detection

Overview

The Omron E3Z-R86 is a compact retro-reflective photoelectric sensor designed for accurate and reliable object detection in industrial environments. With a sensing distance ranging from 100 mm to 4 m (when using the E39-R1S reflector), this sensor is suitable for various applications requiring precise detection over moderate distances. Its robust construction and versatile connectivity make it a preferred choice for automation systems.

Key Features

• Sensing Distance: Adjustable from 100 mm to 4 m using the E39-R1S reflector.

• Output Type: PNP open collector with Light-ON/Dark-ON selectable operation modes.

• Connection: Equipped with an M8 4-pin connector for easy and secure installation.

• Light Source: Utilizes a red LED (660 nm) for consistent and visible detection.

• Compact Design: Dimensions of 10.8 mm (W) × 20 mm (D) × 31 mm (H), facilitating integration into space-constrained setups.

• High-Speed Response: Operate or reset response time of 1 ms max, ensuring prompt detection.

• Environmental Resistance: IP67-rated housing made of polybutylene terephthalate (PBT), providing protection against dust and water ingress.

Technical Specifications

• Model Number: E3Z-R86

• Sensing Method: Retro-reflective with M.S.R. (Mirror Surface Rejection) function

• Sensing Distance:

  • With E39-R1S Reflector: 100 mm to 4 m

  • With E39-R1 Reflector: 100 mm to 3 m

• Standard Sensing Object: Opaque objects with a minimum diameter of 75 mm

• Directional Angle: 2° to 10°

• Power Supply Voltage: 12 to 24 VDC ±10% with ripple (p-p) 10% max

• Current Consumption: 30 mA max

• Control Output:

  • Voltage: 26.4 VDC max

  • Current: 100 mA max

  • Residual Voltage: 1 V max (load current less than 10 mA); 2 V max (load current 10 to 100 mA)

• Operation Mode: Light-ON/Dark-ON selectable

• Response Time: Operate or reset: 1 ms max

• Ambient Light Immunity:

  • Incandescent Lamp: Up to 3,000 lx

  • Sunlight: Up to 10,000 lx

• Operating Temperature Range: -40°C to 55°C (with no freezing or condensation)

• Storage Temperature Range: -40°C to 70°C (with no freezing or condensation)

• Operating Humidity Range: 35% to 85% (with no condensation)

• Vibration Resistance: 10 to 55 Hz, 1.5 mm double amplitude in X, Y, and Z directions for 2 hours

• Shock Resistance: 500 m/s² (approx. 50G) 3 times each in X, Y, and Z directions

• Degree of Protection: IEC IP67

• Weight: Approximately 20 g (including packaging)

Applications

• Conveyor Systems: Detecting packages or items on moving belts.

• Packaging Machinery: Ensuring presence or absence of products in packaging lines.

• Automated Assembly Lines: Verifying component placement and orientation.

• Material Handling: Monitoring object flow and positioning in sorting systems.

• Door and Gate Control: Sensing obstructions or triggering automatic doors.

Why Choose Omron E3Z-R86?

• Extended Sensing Range: Capable of detecting objects up to 4 meters away, accommodating various application needs.

• Compact and Durable: Small form factor with robust construction ensures longevity even in harsh environments.

• Flexible Operation Modes: Light-ON/Dark-ON selection allows adaptation to different detection requirements.

• Easy Installation: M8 connector facilitates quick and reliable setup.

• High Immunity to Ambient Light: Reliable performance even under strong lighting conditions.
