Allen-Bradley 1756-OF4 module, 4-channel analog output, voltage and current, suitable for ControlLogix systems.

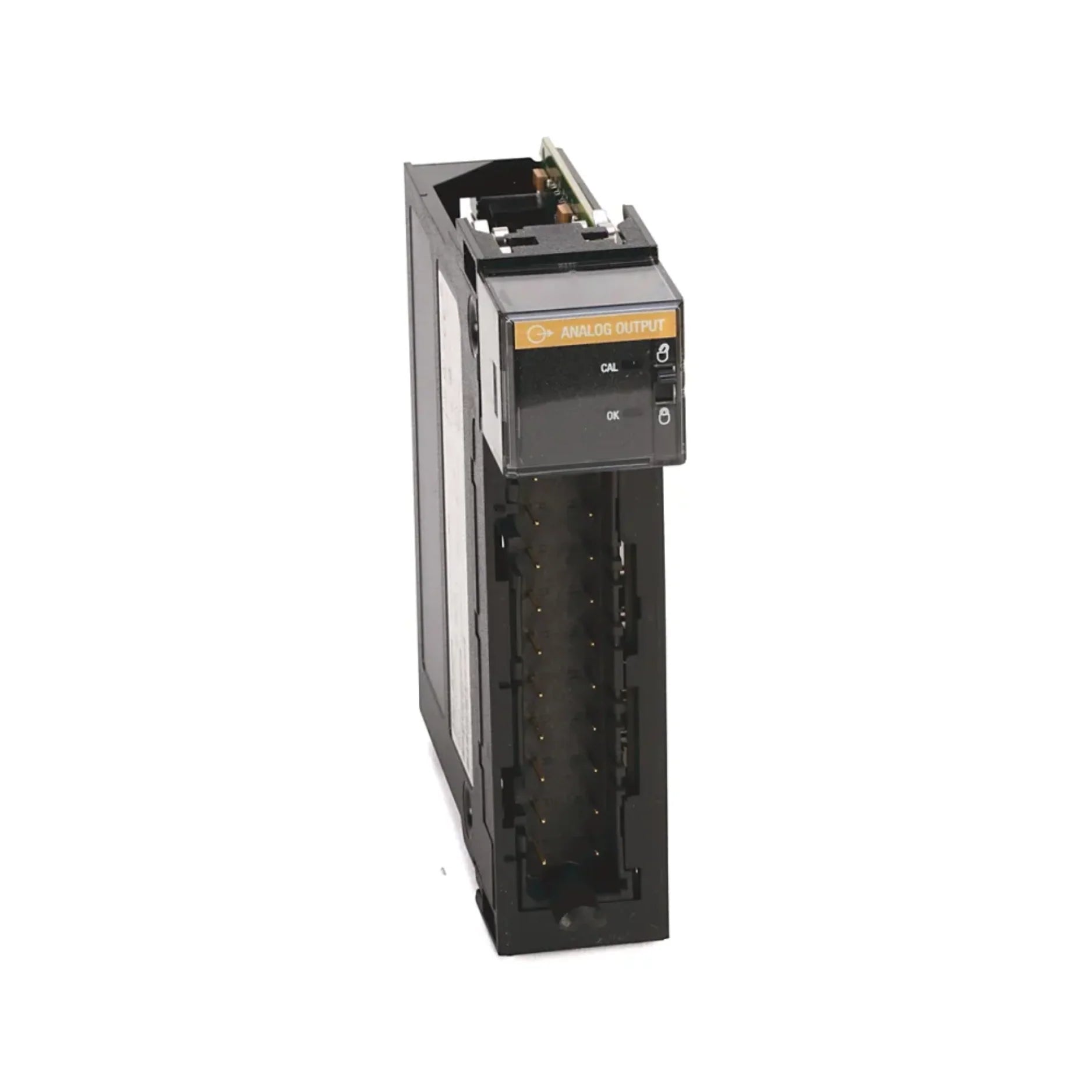

Allen-Bradley 1756-OF4

SKU: 1756-OF4

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1756-OF4 | ControlLogix Analog Output Module (4-Point, Voltage/Current)

Overview

The Allen-Bradley 1756-OF4 is a 4-channel analog output module for ControlLogix systems, crafted to deliver precise voltage or current signals for controlling external devices like actuators, drives, and valves. It features single-ended outputs supporting both current (0–20 mA, 4–20 mA) and voltage (±10V, 0–10V) ranges.

With flexible configuration, high accuracy, and seamless integration into Studio 5000 Logix Designer, this module is perfect for process control and motion applications.

Key Features

  • 4 Single-Ended Analog Outputs – Voltage and current configurable

  • Voltage Ranges: 0–10V, ±10V

  • Current Ranges: 0–20 mA, 4–20 mA

  • High Accuracy & Resolution – Stable and reliable analog control

  • Channel Status LEDs – Simplified diagnostics

  • Hot-Swappable Design – No downtime for replacement

  • Compatible Terminal Blocks: 1756-TBNH or 1756-TBSH

  • Studio 5000 Integration – Easy programming and monitoring

Technical Specifications

  • Catalog Number: 1756-OF4

  • Number of Outputs: 4

  • Output Type: Single-ended (current or voltage)

  • Resolution: 16 bits

  • Accuracy: ±0.1% of full scale (typical)

  • Isolation Voltage: 250V continuous

  • Backplane Current: ~140 mA @ 5.1V DC

  • Output Load:

    • Voltage: ≥1k ohms

    • Current: ≤750 ohms

  • Operating Temperature: 0°C to +60°C

  • Connector Type: 20-pin RTB (sold separately)

  • Mounting: ControlLogix chassis

Applications

  • Process Control Systems – Analog control of valves, actuators, and pumps

  • Motion Control – Signal output to drives and positioners

  • Industrial Automation – Analog signal output for monitoring and control

  • OEM Machine Builders – Flexible signal generation for analog devices

Why Choose the 1756-OF4?

  • Supports both current and voltage output for flexible control

  • Compact, high-precision analog output solution for ControlLogix

  • Reliable performance in industrial and process applications

Order Now

Available and ready to ship worldwide.

Brand-New, Authentic, Factory-Sealed Components At PLCVERSE, every item we offer is guaranteed to be brand-new, original, and delivered in its factory-sealed packaging. Our parts are sourced with strict quality control to ensure you receive genuine automation components that meet top industry reliability and performance standards.
1-Year Warranty Coverage Every new product purchased from PLCVERSE includes a full 1-year warranty. We stand behind the quality and durability of our automation components, providing protection against manufacturing defects under normal use. Our commitment is to ensure you receive dependable, high-performance parts with complete peace of mind.
PLCVERSE is an independent seller of industrial automation equipment. We are not an authorized distributor, partner, or representative of any of the manufacturers featured on this website. All brand names, trademarks, and logos remain the property of their respective owners. PLCVERSE has no association or endorsement from ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other brands mentioned.
